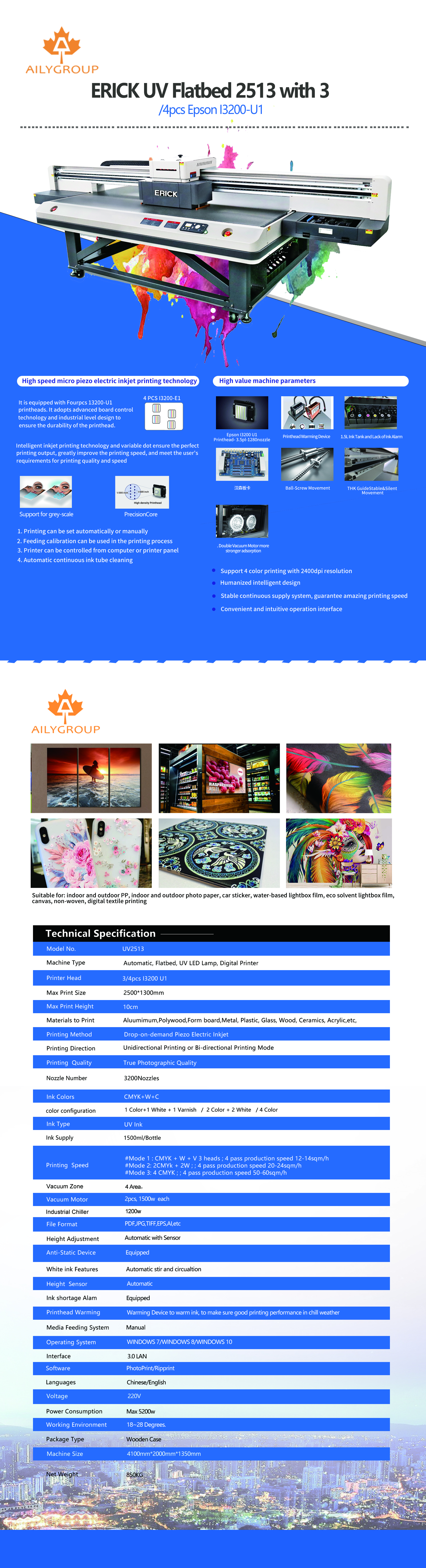

Large Format Flatbed UV Printer UV2513 Flatbed Printer Machine Manufacturer Supplier

short description:

1. Advertising serise

The main application: Billboards, light boxes, logo, signs Etc.

Applicable materials: Acrylic, organic glass, ABS board, PVC expansion sheet, aluminous model board Etc.

2. Electronic products series

The main application: phone cover, cell phone holster, mobile power supply, refrigerator plate, induction cooker panel, electrical panel Etc.
Applicable materials: PC, TPU, ABS, PU leather, Acrylic, glass, Stainless steel panel Etc.

Product Detail

Product Tags

Model type ERICK-UV2513
Nozzle configuration Japan micro piezo electric nozzle 1 to 8 Ricoh Gen5,Two Dx5/Dx7
Maximum print area 2500mm x 1300mm
Printing speed EPS:sketch model:32m2/hour Prod action :20m2/hour High quality:12m2/hour Ricoh: sketch model:48m2/hour Production:25m2/hour High quality pattern:16m2/hour
Printing material Type: acrylic,aluminum board,board,ceramic tile,foam boardjSheet metal,glass,cardboard and other flat object Thickness :0mm-120mm Average Weight :25kg maximum size 2500mmx1300mm
Ink type C/M/Y/K/Lc/Lm+W, C/M/Y/K/+W, C/M/Y/K/+W+V,
Lifetime UV lamp Ricoh: LED- UV2only1500W life20000-30000 hours Watercooling
Data transmission interface USB 2.0 Win7\Win10
RIP software PhotoPrint,Ultraprint
Power supply and power AC220v,hosts the largest 1350w,LED the UV lamps 200-1500w,1500w vacuum suction platform
Image format Tiff,JEPG,Postscript3,EPS,PDF Etc.
Color control In line with the international standard for the ICC,with curve and density adjustment function
Printing resolution 600*600dpi, 600*900dpi, 600*1200dpi
Operating environment Temperature :20°C-28°C humidity :60%-80%
Available ink UV ink
Machine size Length 4050mm *Width 2100mm * Height 1260mm 800kg
Package size Length 4150mm * Width 2250mm * Height 1650mm 1100kg
